Overview

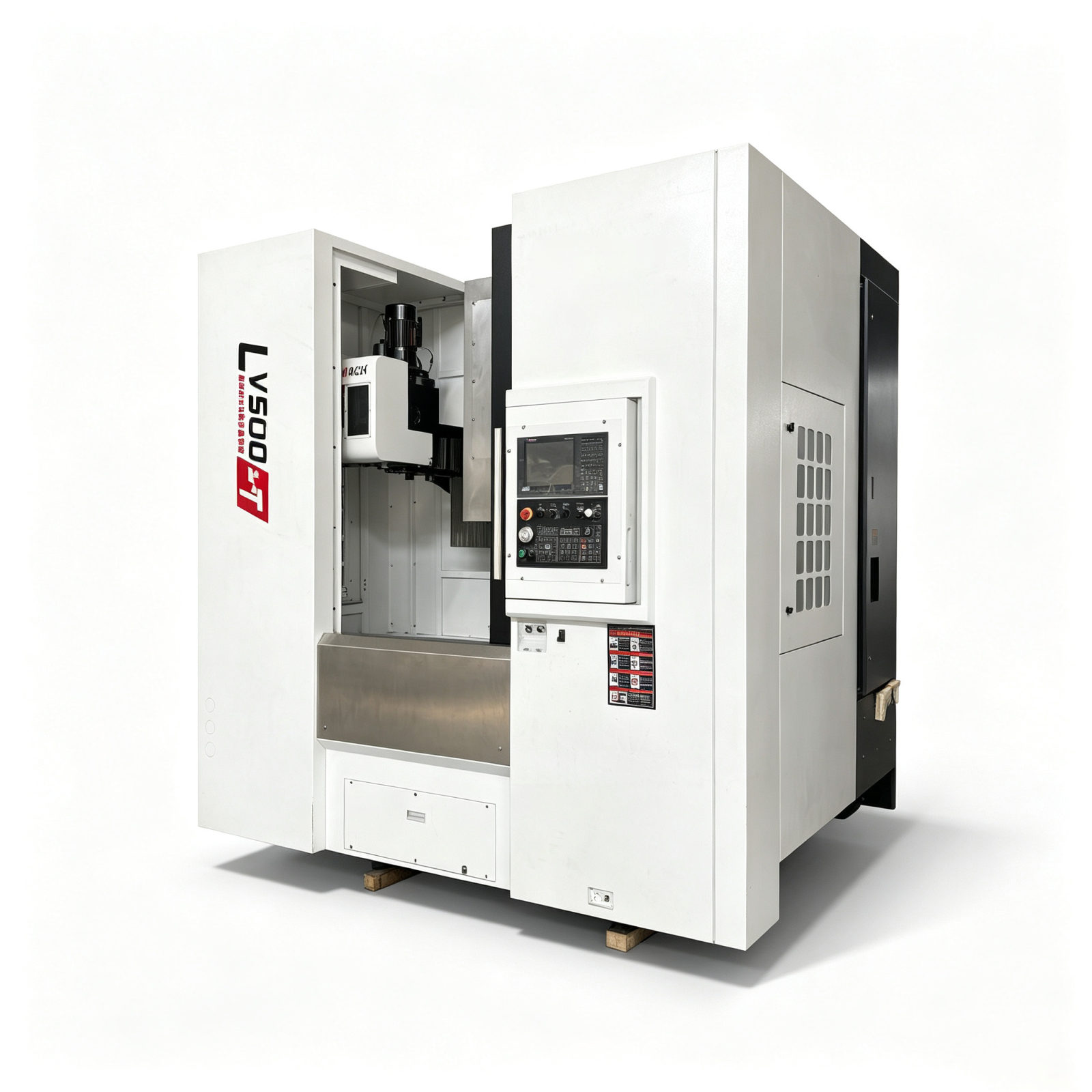

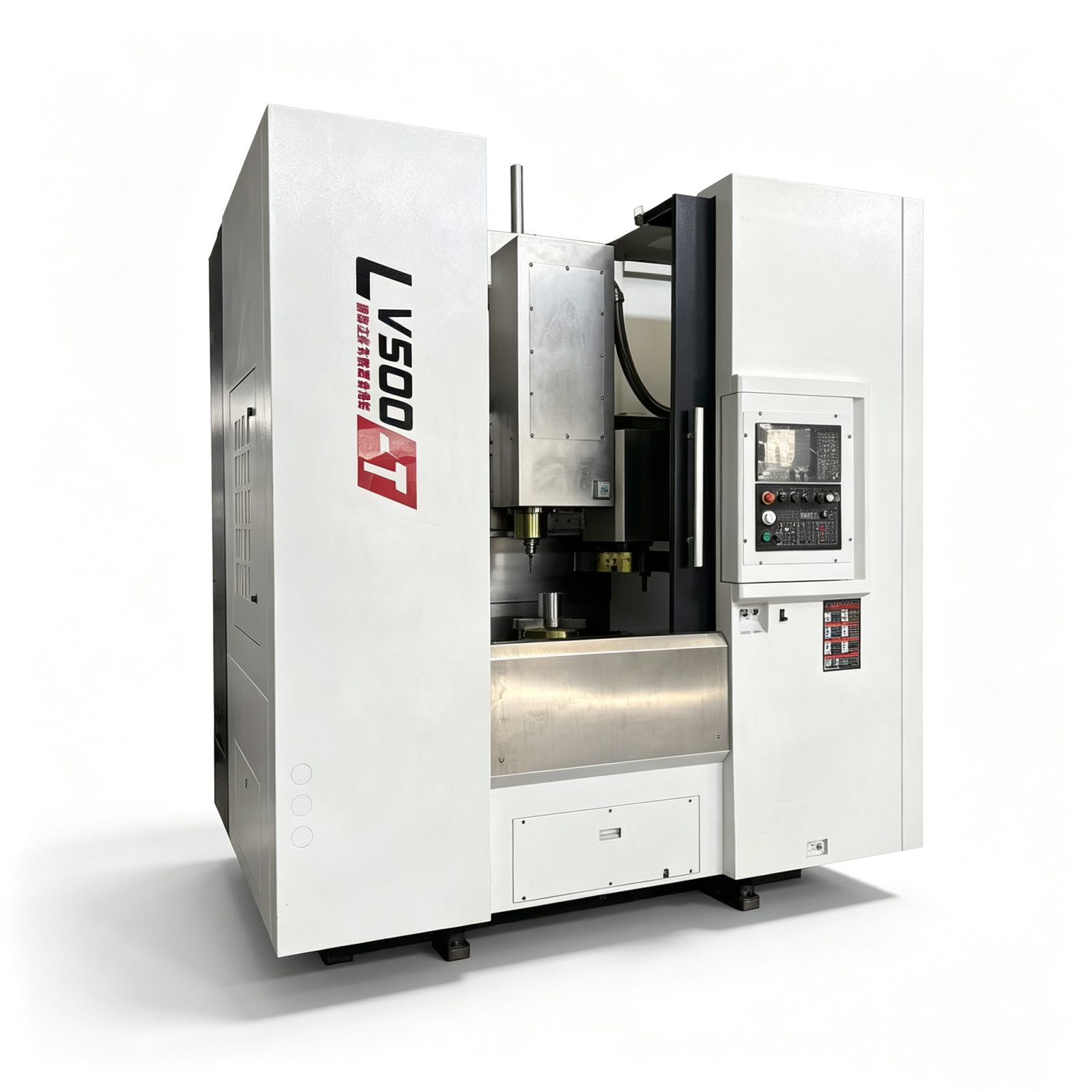

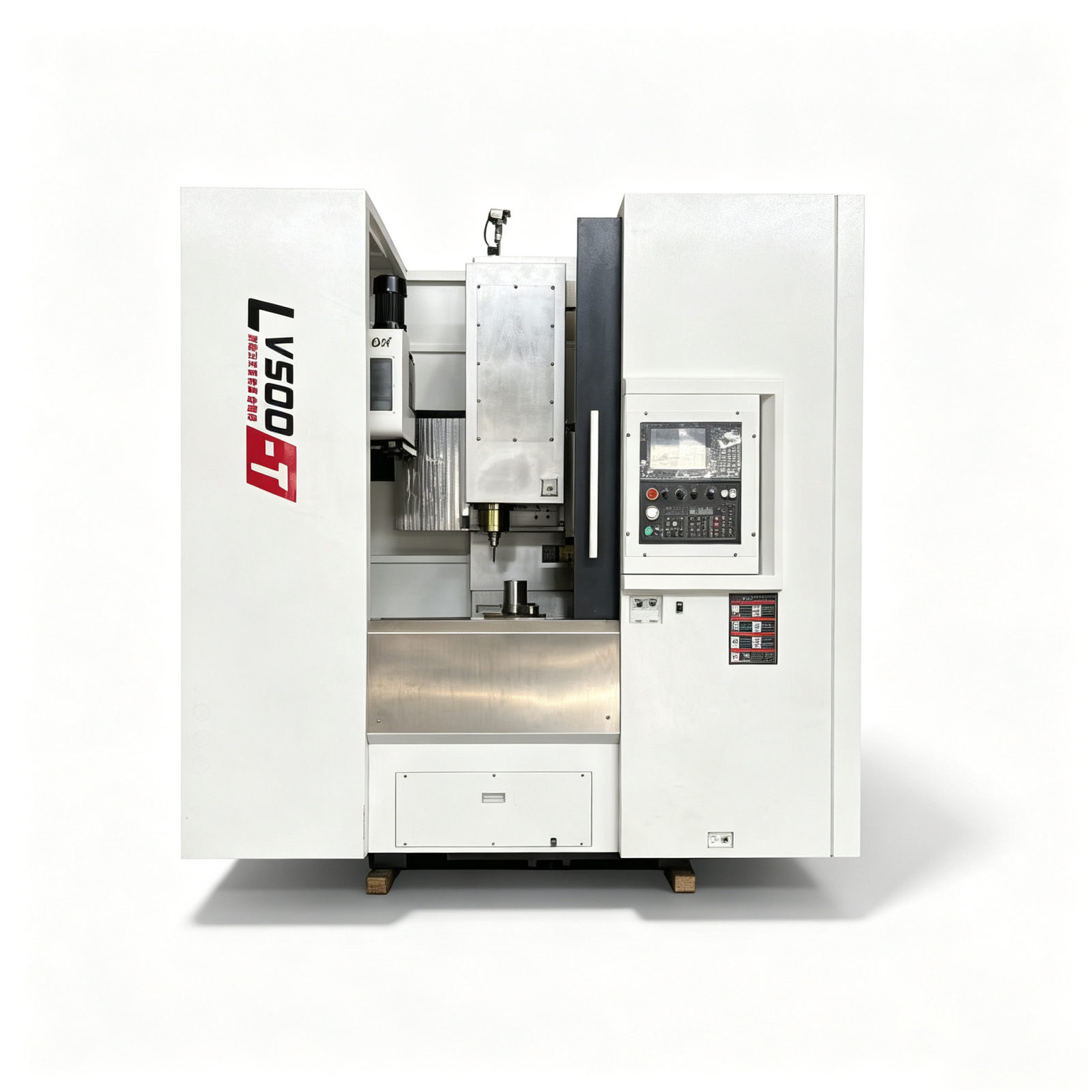

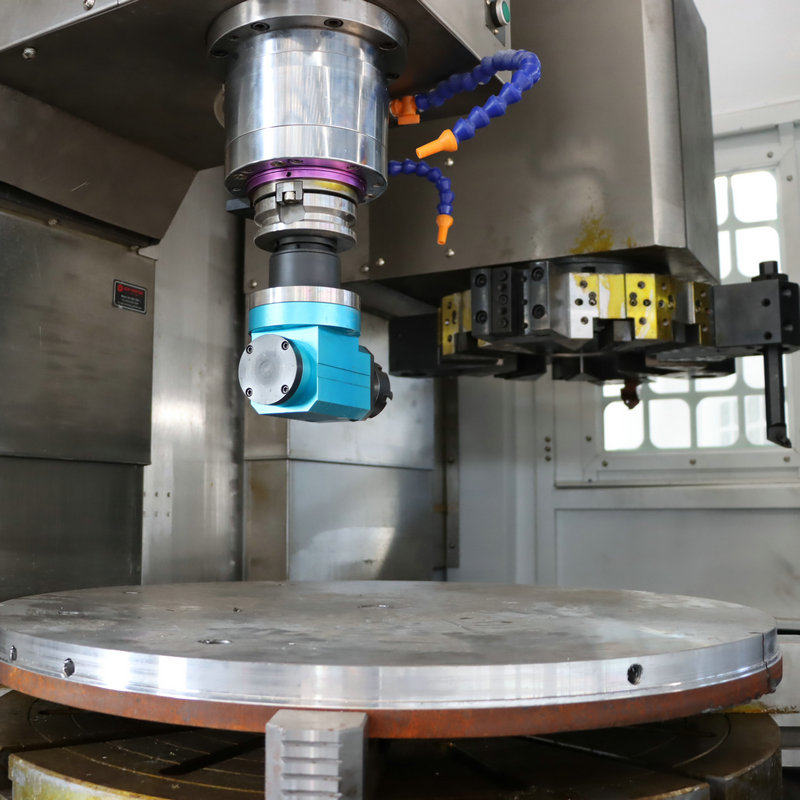

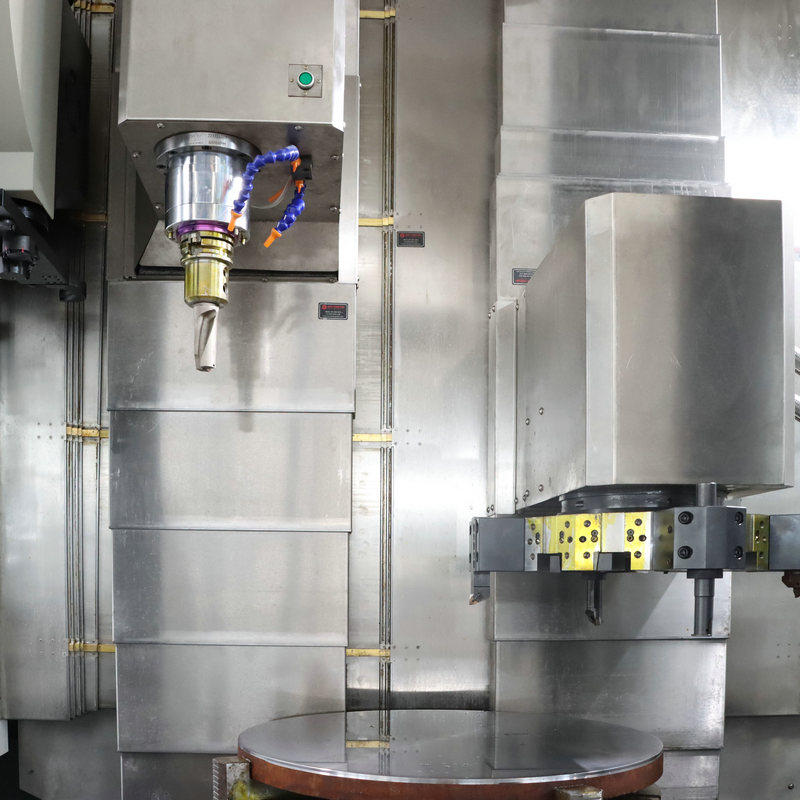

The vertical turn-mill center is a hybrid CNC machine that combines turning and milling functions in a single setup, specifically optimized for large-diameter, short-length workpieces, and turbine housings. Unlike conventional horizontal lathes, this machine holds the workpiece on a horizontal rotary table while the vertical spindle performs turning, milling, drilling, and tapping operations. This configuration allows gravity to assist chip removal and ensures stable clamping for heavy, unbalanced parts, making it particularly effective for industries such as aerospace, wind energy, and heavy equipment manufacturing.

Features

Unified turning and milling platform – Eliminates the need to transfer workpieces between separate lathes and machining centers, reducing cycle time and eliminating alignment errors between operations.

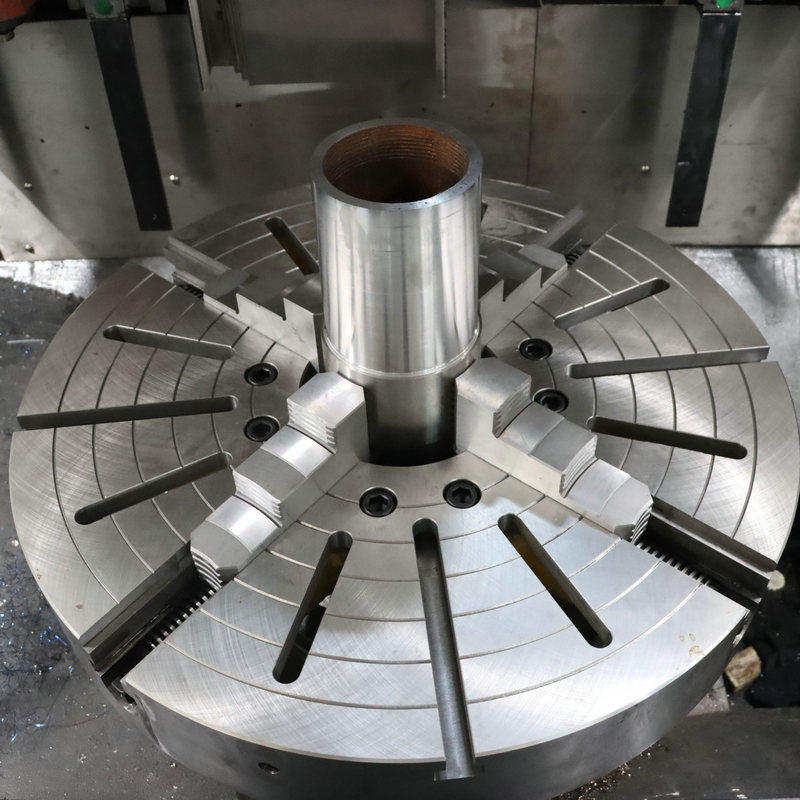

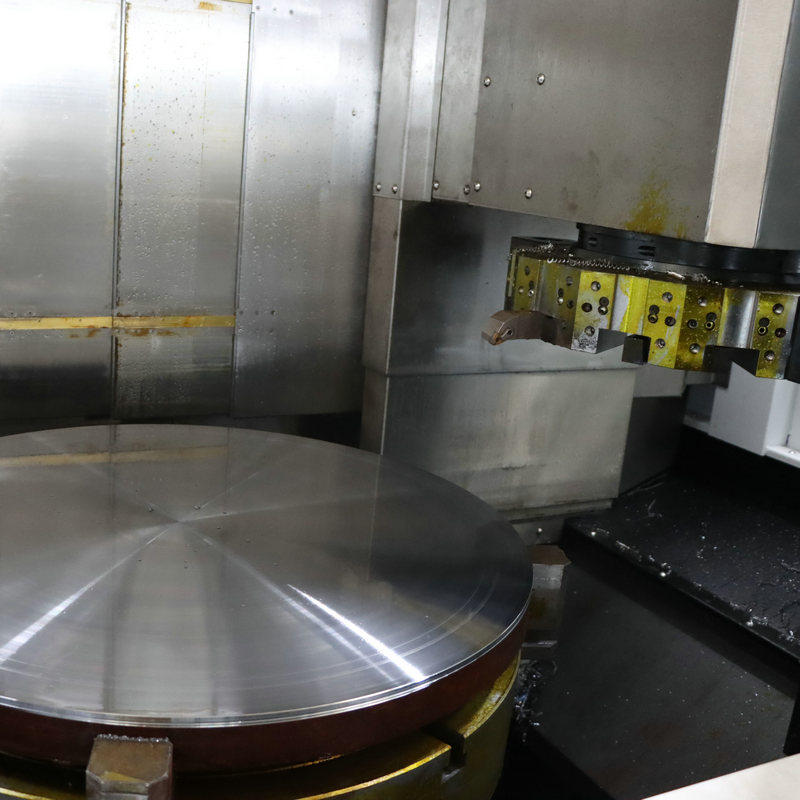

Large-diameter capacity – The horizontal worktable provides generous support for parts up to several meters in diameter, with adjustable clamping options for both standard and custom fixtures.

Gravity-assisted chip control – Vertical spindle orientation allows chips to fall clear of the cutting zone, preventing re-cutting and simplifying coolant management.

High-rigidity table drive – The worktable is driven by a high-torque motor with precision gearing, ensuring smooth rotation at both low speeds for heavy turning and higher speeds for finishing.

Integrated automation options – Designed with standard interfaces for robotic loaders, pallet systems, and part measurement devices, supporting fully automated cells for high-volume production.
