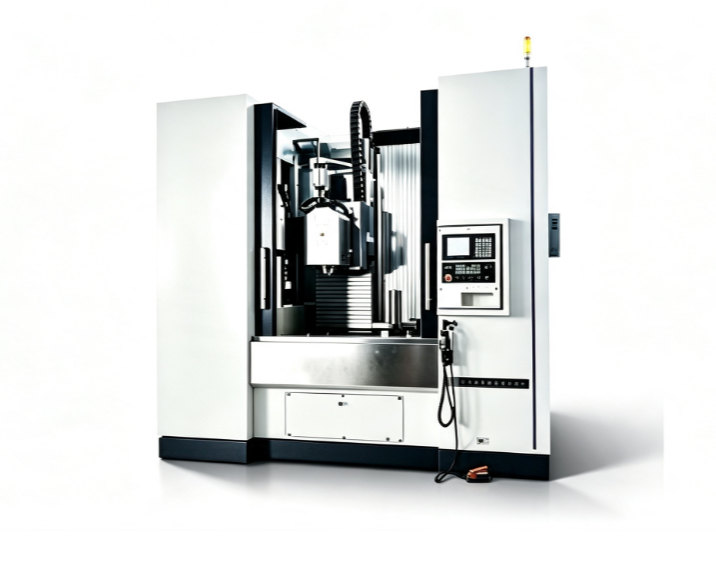

LV400-T 5 Axie Vertical CNC Turning and Milling Center

Overview

The 5‑axis turn‑mill center is a high‑performance CNC machine tool that combines turning, milling, drilling, and tapping capabilities in a single, integrated platform. Unlike conventional lathes or machining centers, this machine is equipped with three linear axes and two rotary axes, enabling true five‑axis simultaneous machining. It is specifically designed for complex, high‑value components such as aerospace structural parts, turbine housings, hydraulic valve bodies, and medical implants, where precision and efficiency are critical.

Features

Full five‑axis machining capability – Enables the machining of complex geometries, including angled surfaces, free‑form contours, and eccentric features, in a single setup.

Single‑clamping complete processing – Turning, milling, drilling, and tapping are performed without repositioning the workpiece, eliminating alignment errors and reducing total cycle time.

Rotary axes for multi‑angle approach – The swiveling spindle head and rotating worktable allow the tool to reach the workpiece from virtually any direction, enabling compound angle and contour machining.

High structural rigidity – The machine is built on a heavy‑duty cast iron base with a stable column‑moving design, ensuring vibration damping and accuracy under heavy cutting loads.

Automation‑ready platform – Designed with standard interfaces for robotic loaders, pallet changers, and in‑process measurement systems, supporting flexible and unattended production.
