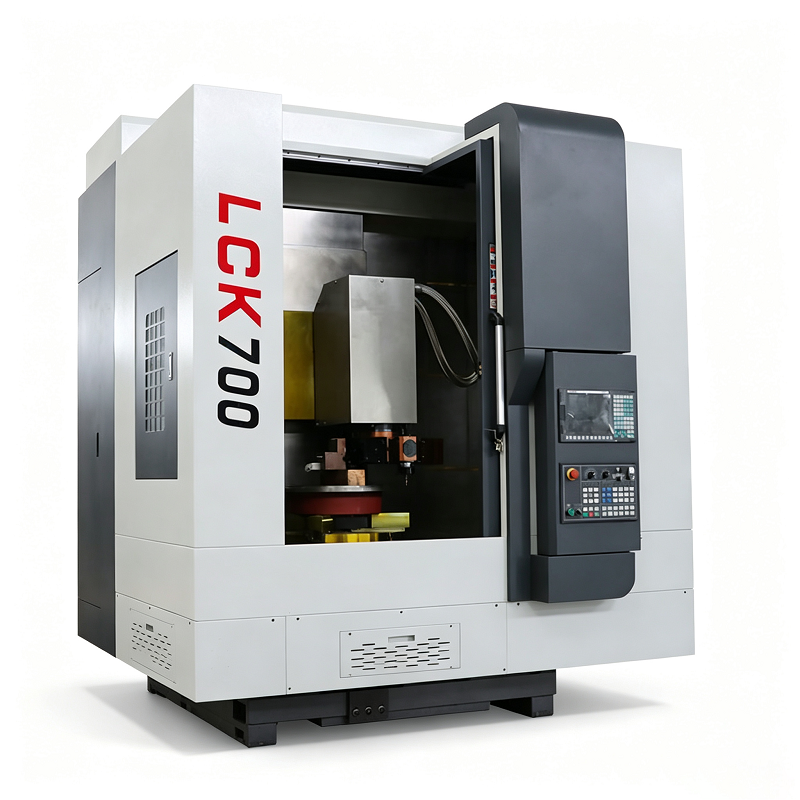

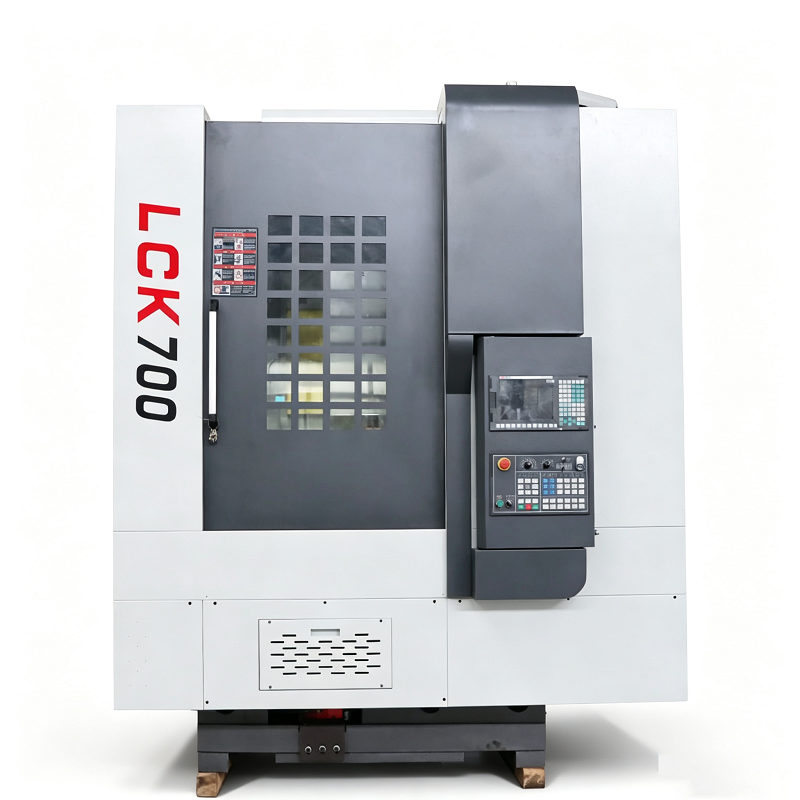

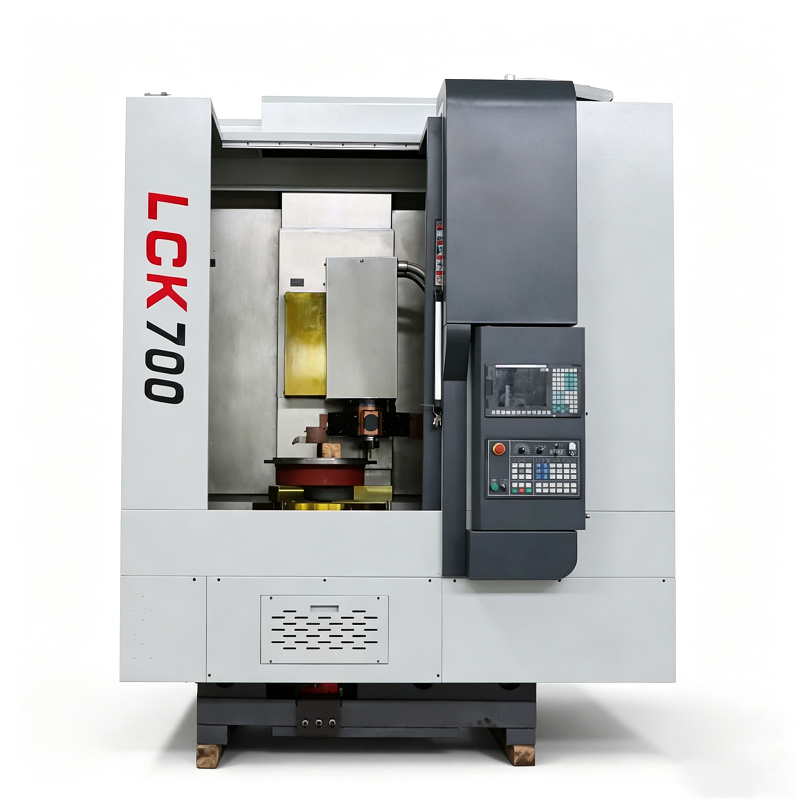

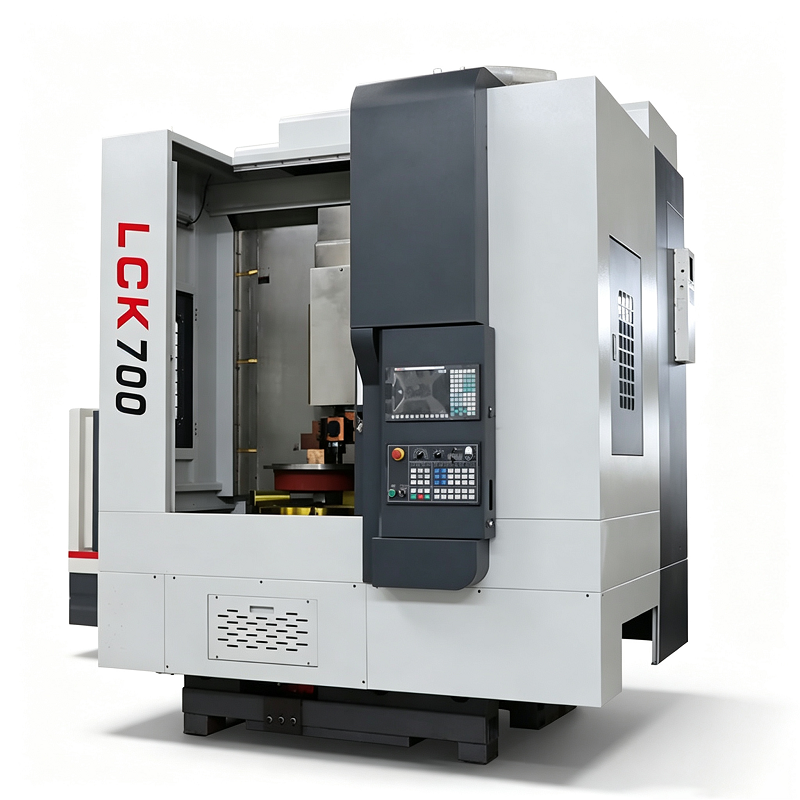

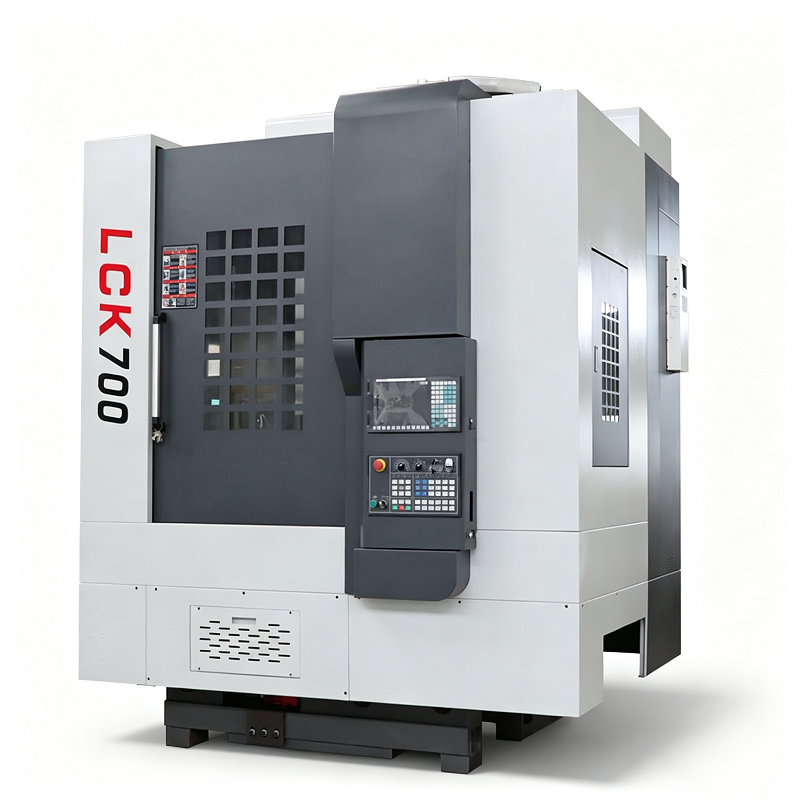

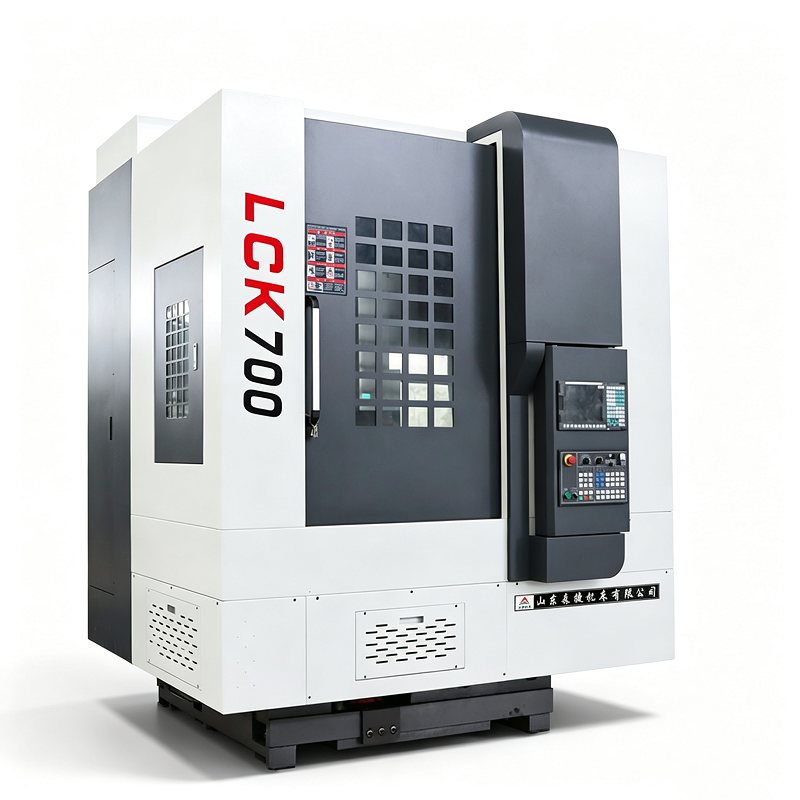

LCK700 CNC Vertical Lathe

Features

High-speed ball screws and roller guide ways ensure rapid traverse and cutting efficiency.

Servo-driven precision components guarantee high positioning and repeat positioning accuracy.

Vertical spindle with horizontal worktable enables convenient loading and clamping.

Compact design saves floor space and allows one operator to manage multiple machines.

Built-in automation interfaces support integration with intelligent production lines.

Main Structural Components

▪Machine Structure – Closed-box ribbed cast iron bed (HT300) with high rigidity and vibration resistance, stress-relieved by aging treatment.

▪Spindle Structure – High-torque, wide-span spindle with precision bearings and belt drive for low noise and high accuracy.

▪Feed System – Servo-driven C3-grade pre-tensioned ball screws and heavy-duty roller guide ways for precise motion.

▪Turret System – Servo-indexed turret with hydraulic clamping and fast tool change; optional live tool turret for milling and drilling.

▪Hydraulic System – Independent system at 7 MPa for turret locking, chuck clamping, and spindle braking.

Automatic Lubrication Device

A centralized pressure-relief lubrication system delivers oil to each point in a timed, metered manner, ensuring reliable long-term operation with minimal maintenance.

Specification
