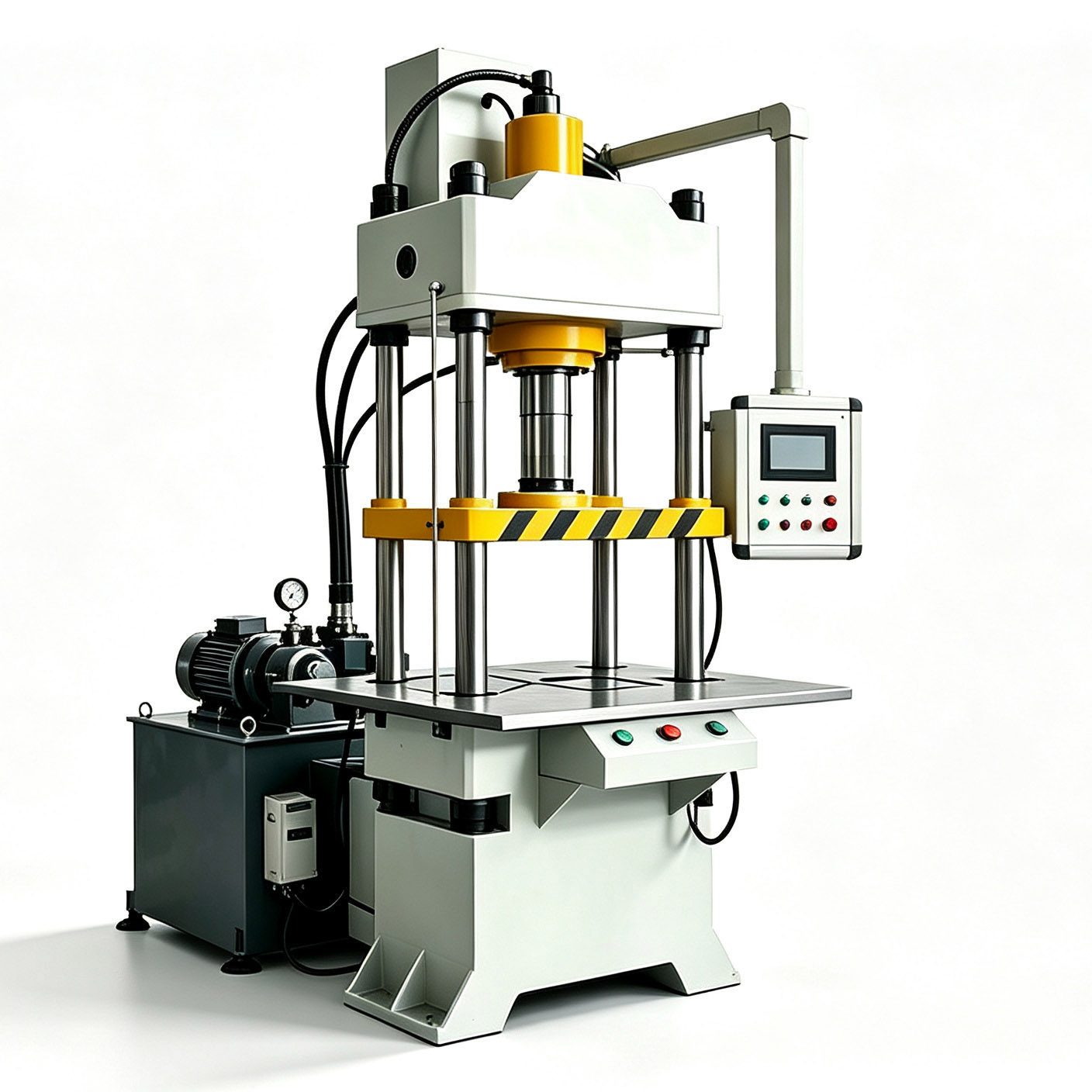

Y32-100 Single-cylinder Hydraulic Press

Overview

This hydraulic press features a rigid three-beam, four-column structure, consisting of an upper beam, a sliding block, a worktable, four columns, and a single main cylinder. The welded frame is stress-relieved through aging or vibration treatment to ensure long-term dimensional stability and resistance to deformation under continuous heavy loads. A single main cylinder is centrally mounted on the upper beam, delivering concentrated pressing force along the machine's centerline. This straightforward, robust design makes the single-cylinder press a reliable and cost-effective choice for general-purpose forming and pressing operations.

Features

Single-cylinder drive – Provides centralized force output with simple construction, making the machine easier to maintain and more cost-effective compared to multi-cylinder designs.

Four-column precision guidance – Four precision-ground columns guide the slider's vertical movement with minimal lateral deflection, ensuring consistent part quality across production runs.

Stress-relieved frame – The welded steel frame undergoes vibration or heat treatment to eliminate internal stress, resisting deformation and ensuring long-term stability.

Versatile operation – Supports multiple working modes including pressure control, stroke control, and pressure-holding for various forming applications.

Wide application range – Suitable for stretching, bending, straightening, stamping, blanking, and general forming operations on both metal and non-metal materials.

Cost-effective solution – Lower oil consumption, fewer moving parts, and simpler installation compared to dual-cylinder designs, ideal for workshops with limited budgets or space.

Customizable configurations – Worktable size, stroke, opening height, and ejector systems can be tailored to specific production requirements.
