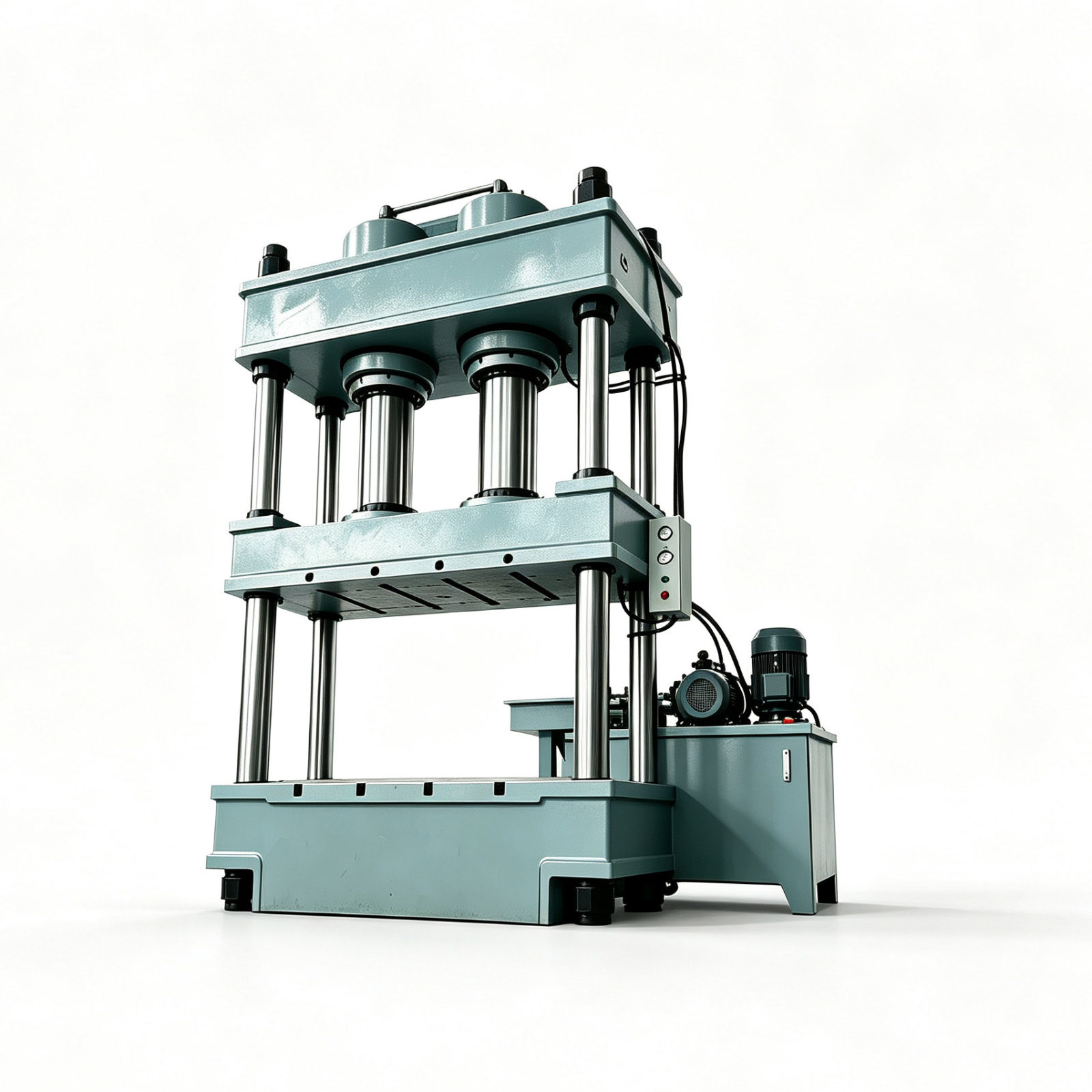

SY32-1000 Dual-cylinder Hydraulic Press

Overview

The dual-cylinder four-column hydraulic press is a heavy-duty machine built on a rigid three-beam, four-column structure. Its frame is constructed from high-strength steel and undergoes vibration aging treatment to eliminate internal stress, ensuring exceptional structural rigidity and resistance to deformation under continuous heavy loads.

The machine is powered by two main hydraulic cylinders arranged symmetrically. This dual-cylinder design ensures uniform force distribution across the worktable, providing superior stability and excellent resistance to off-center loads. The four precision-ground, chrome-plated columns guide the slider's vertical movement with high accuracy.

It can perform a wide range of metal forming operations including stretching, bending, straightening, stamping, and deep drawing.

Features

Rigid, stress-relieved frame – The high-strength steel welded frame with three-beam four-column construction, treated with vibration aging, ensures long-term stability and resistance to deformation.

Symmetrical dual-cylinder drive – Two main cylinders arranged symmetrically on the upper beam deliver uniform pressure distribution and excellent resistance to off-center loads.

Precision-guided slider – Four precision-ground, chrome-plated columns guide the slider's vertical movement with high accuracy, ensuring consistent part quality.

Versatile forming capability – Suitable for a wide range of applications including stretching, bending, straightening, stamping, deep drawing, and pressing.

Customizable configurations – Worktable size, stroke, opening height, and ejection systems can be tailored to specific production requirements.
