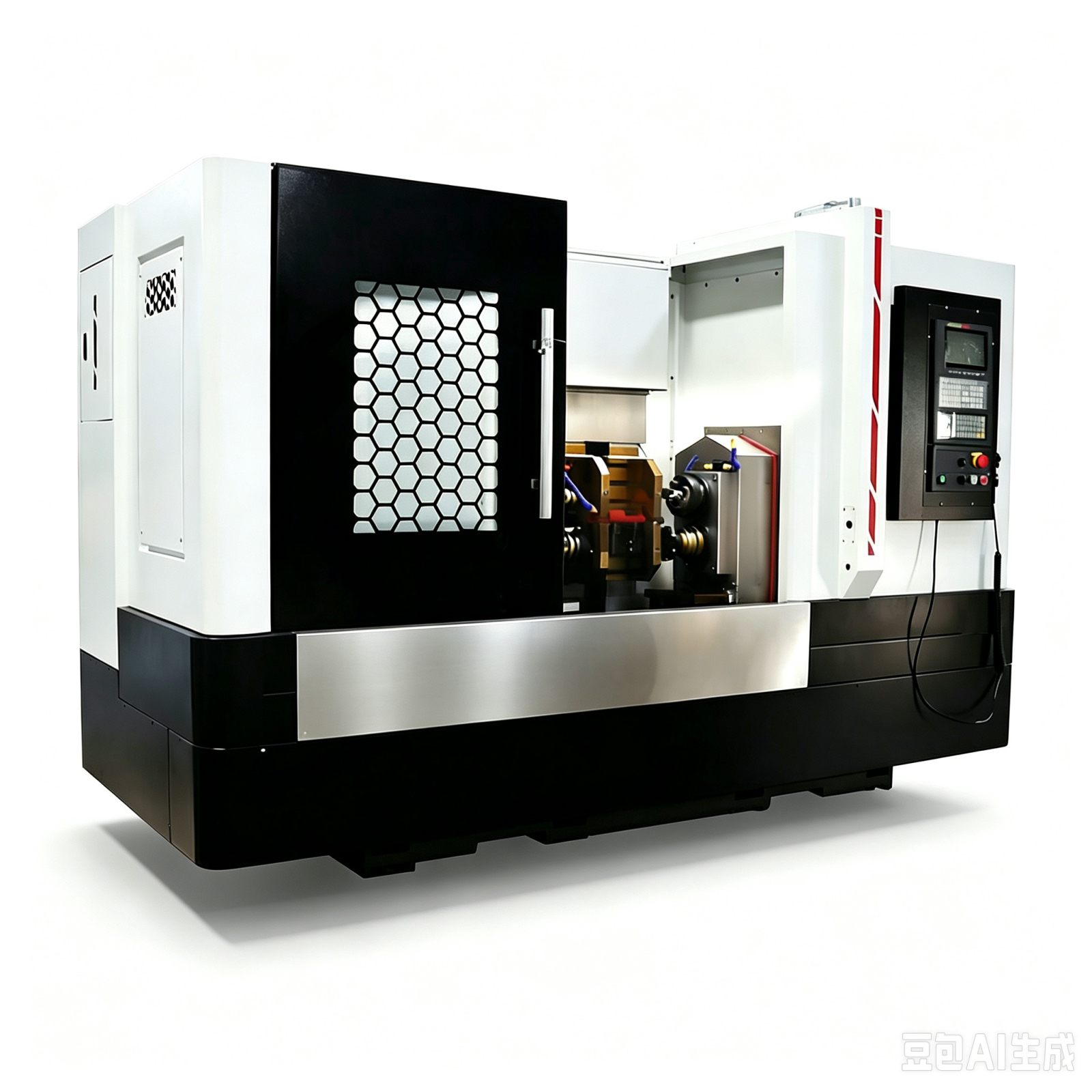

XZL150–500/600/700 Vertical Milling and Centering Machine

Overview

This machine is a specialized CNC solution designed for high‑efficiency processing of shaft‑type components, performing end‑face milling and center hole drilling on both ends of a workpiece in a single clamping operation. The vertical spindle orientation and horizontal worktable provide excellent workpiece accessibility, making it particularly suitable for short‑length shafts, stepped components, and parts that require stable clamping during heavy cutting. The machine is widely used for batch production of motor shafts, gear shafts, camshafts, and similar components where precision and repeatability are critical.

Features

Vertical spindle design ensures stable cutting conditions and allows chips to fall away from the work area, reducing tool wear and improving surface finish.

Compact footprint with a rigid cast structure provides high static and dynamic rigidity, ideal for both heavy roughing and precision finishing.

One‑clamping, two‑end machining eliminates repositioning errors and ensures consistent center hole positioning and end‑face squareness.

Independent CNC‑controlled axes offer flexible machining sequences for various shaft geometries and workpiece lengths.

Hydraulic self‑centering clamping ensures secure workpiece holding with quick changeover between different shaft sizes.

Optional operations such as tapping, chamfering, grooving, and boring can be performed in the same setup, expanding application range.

Designed with automation interfaces for seamless integration with robotic loaders and material handling systems.
