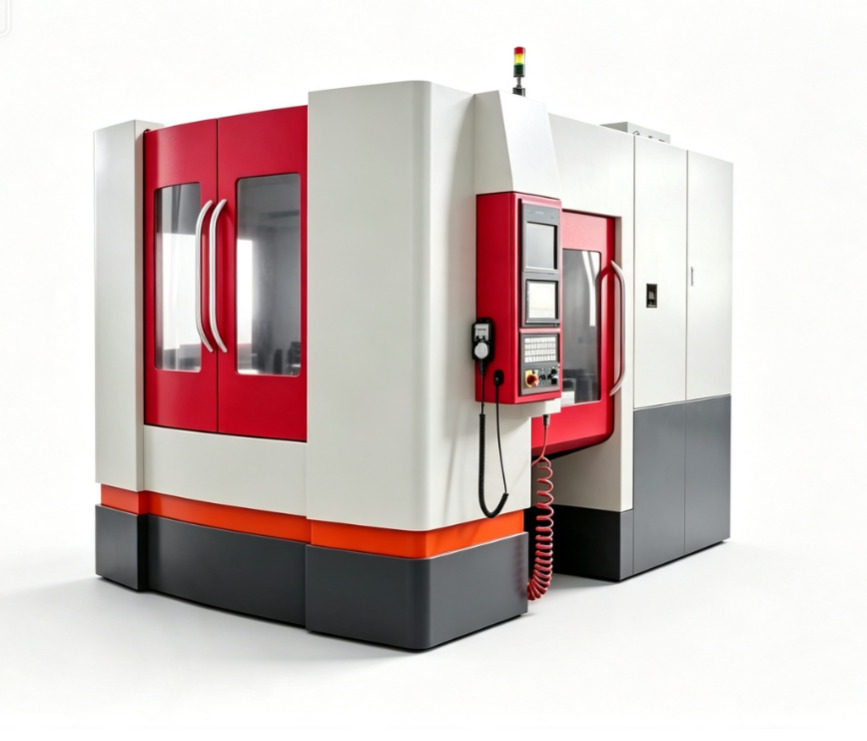

Q1322 Horizontal CNC Machining Center

Introduction

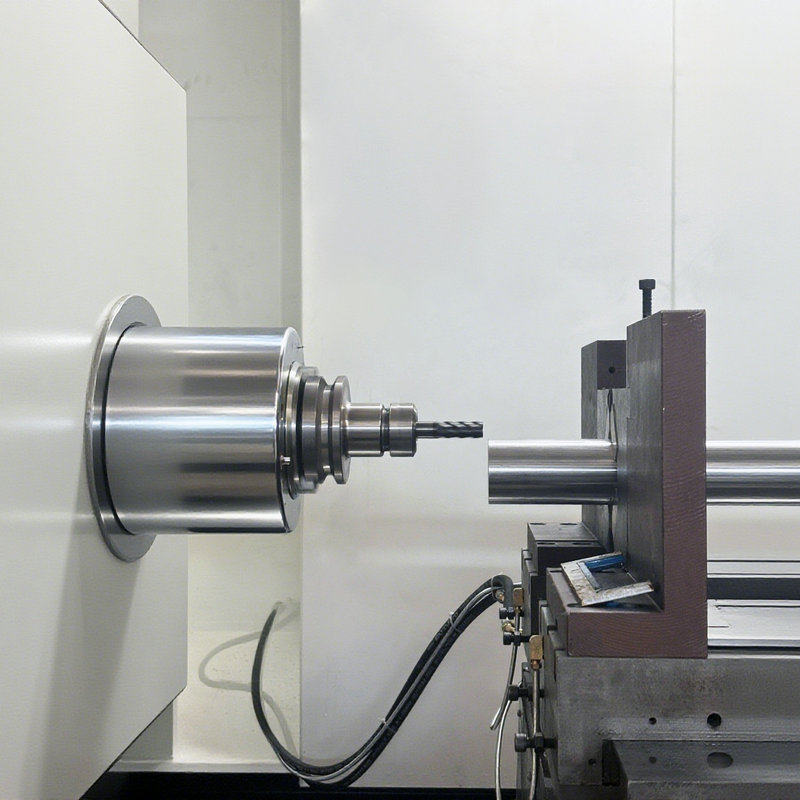

The horizontal machining center is a CNC machine tool with a horizontally oriented spindle, designed for high‑efficiency processing of multi‑faced workpieces such as housings, gearboxes, and pump bodies. Its precision indexing rotary table allows machining on four sides of a part in a single clamping cycle, eliminating the need for manual repositioning and significantly reducing setup errors. This design is particularly suitable for applications requiring high dimensional accuracy and consistent part quality across medium to large production runs.

Features

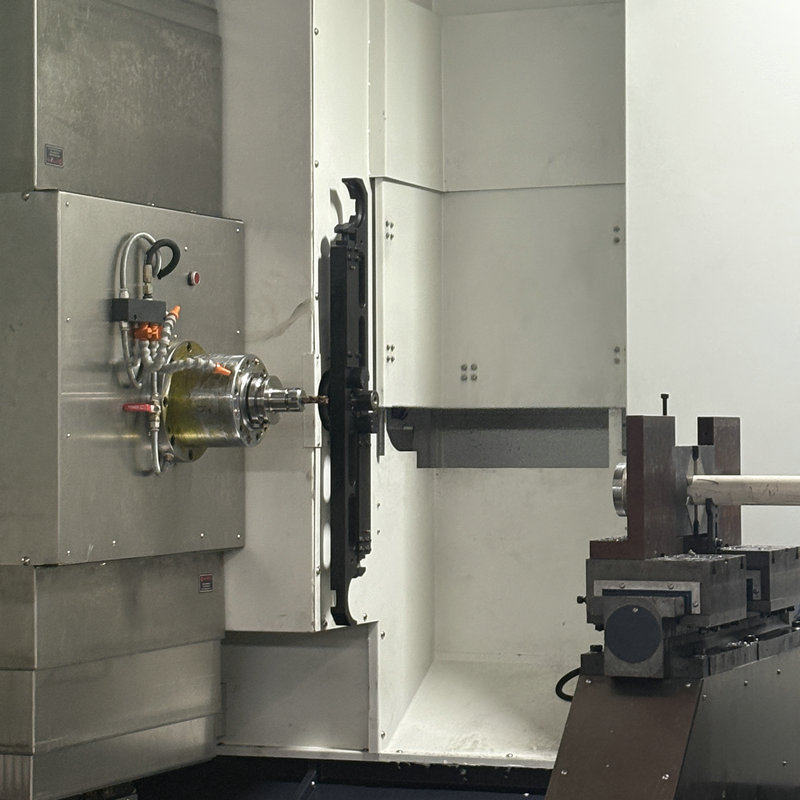

The machine is built on a rigid one‑piece cast iron bed with a wide base and a heavy‑duty column, providing excellent torsional rigidity and vibration damping. The horizontal spindle layout enables chips to fall away naturally from the cutting zone, preventing re‑cutting and reducing tool wear. All linear axes are equipped with precision guide ways and pre‑tensioned ball screws, ensuring smooth motion and reliable positioning accuracy. The automatic tool changer and large‑capacity tool magazine support continuous, uninterrupted machining, while standard automation interfaces allow easy integration with pallet changers and robotic loaders for flexible production setups.

Parameter
