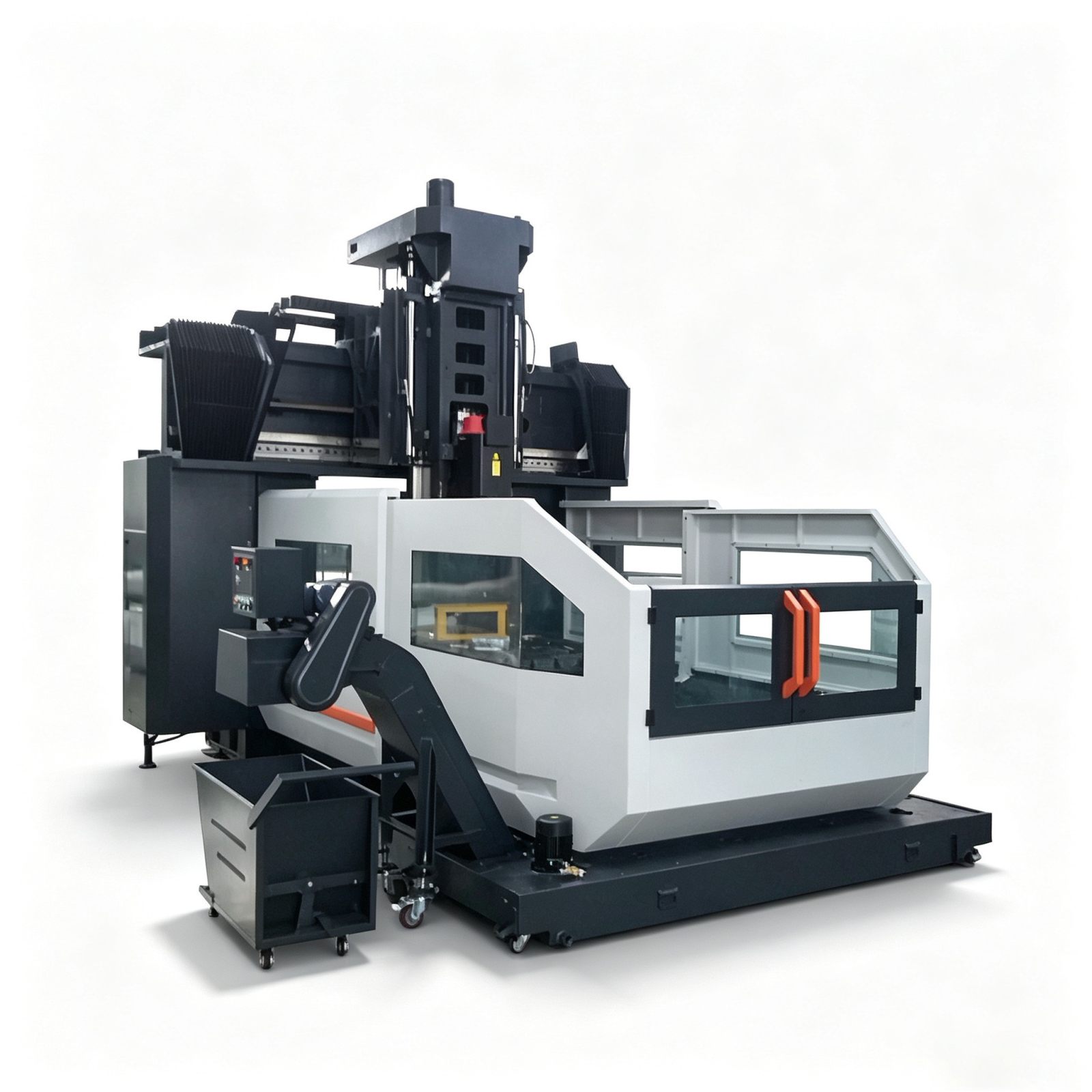

GMC2013 Gantry Machining Center

Overview

The gantry machining center is a large‑scale CNC machine tool designed for high‑precision machining of oversized workpieces such as large molds, structural frames, and heavy components. Its bridge‑type structure provides exceptional stability and a wide working envelope, making it suitable for industries including aerospace, automotive, energy, and heavy machinery. The machine performs milling, boring, drilling, and tapping operations on parts that exceed the capacity of standard vertical or horizontal machining centers.

Features

High‑rigidity gantry structure – The fixed or moving bridge design with two columns and a crossbeam forms a rigid frame that resists torsional forces and maintains accuracy under heavy cutting loads.

Large working envelope – The worktable moves longitudinally while the spindle head traverses the crossbeam and moves vertically, covering a wide machining area for oversized workpieces.

Heavy‑duty drive system – All axes are driven by high‑torque servo motors, precision ball screws, and heavy‑duty roller guide ways for smooth motion and reliable positioning over long travels.

Powerful spindle – The high‑power spindle delivers both high‑speed finishing and heavy‑duty roughing capabilities, adapting to various materials and applications.

Extended tool capacity – A large‑capacity tool magazine and automatic tool changer support continuous operation with minimal downtime.

Versatile configuration – Optional attachments such as right‑angle heads or five‑axis configurations expand processing flexibility for complex part geometries.

Efficient chip management – A robust chip evacuation system ensures effective removal of swarf during extended production runs.
