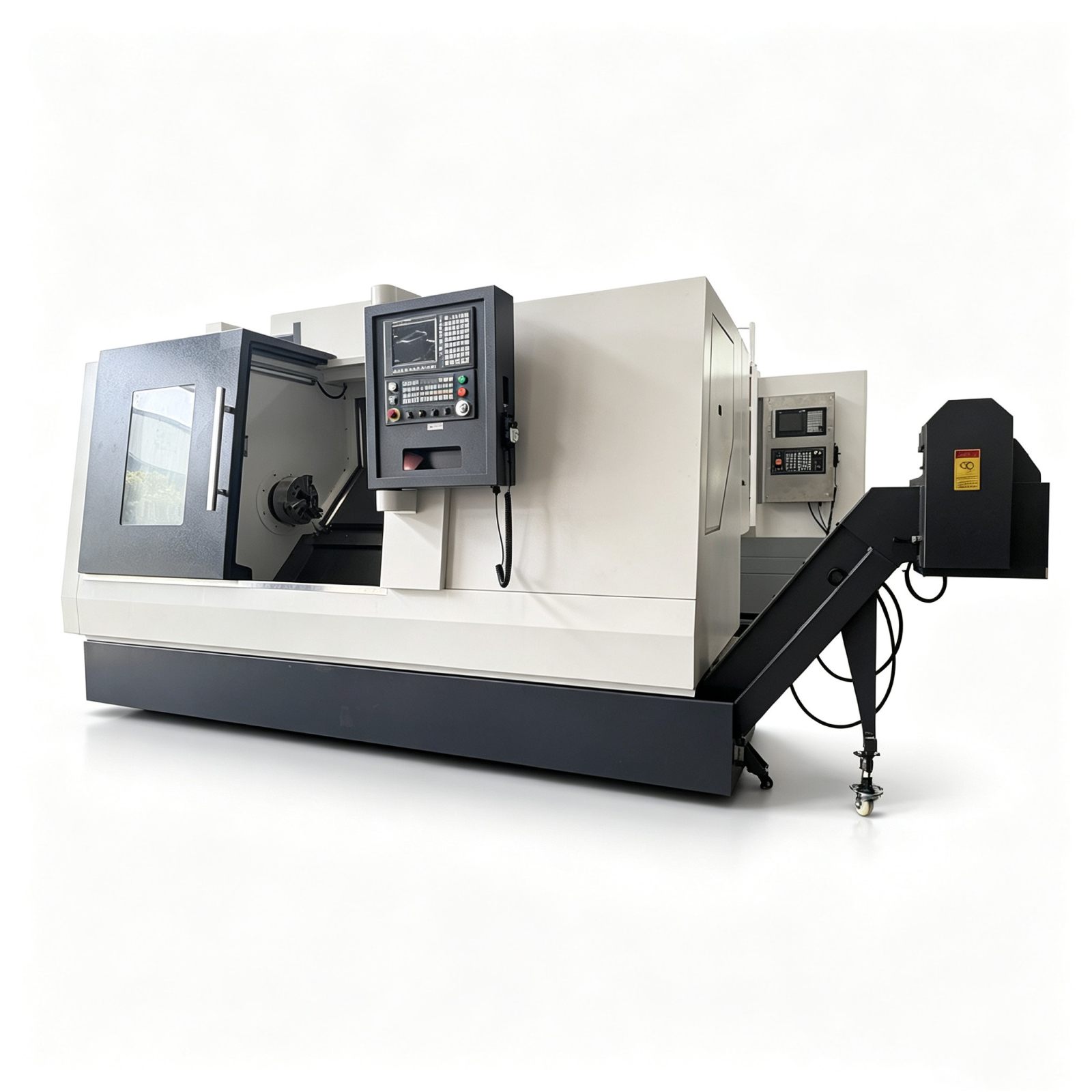

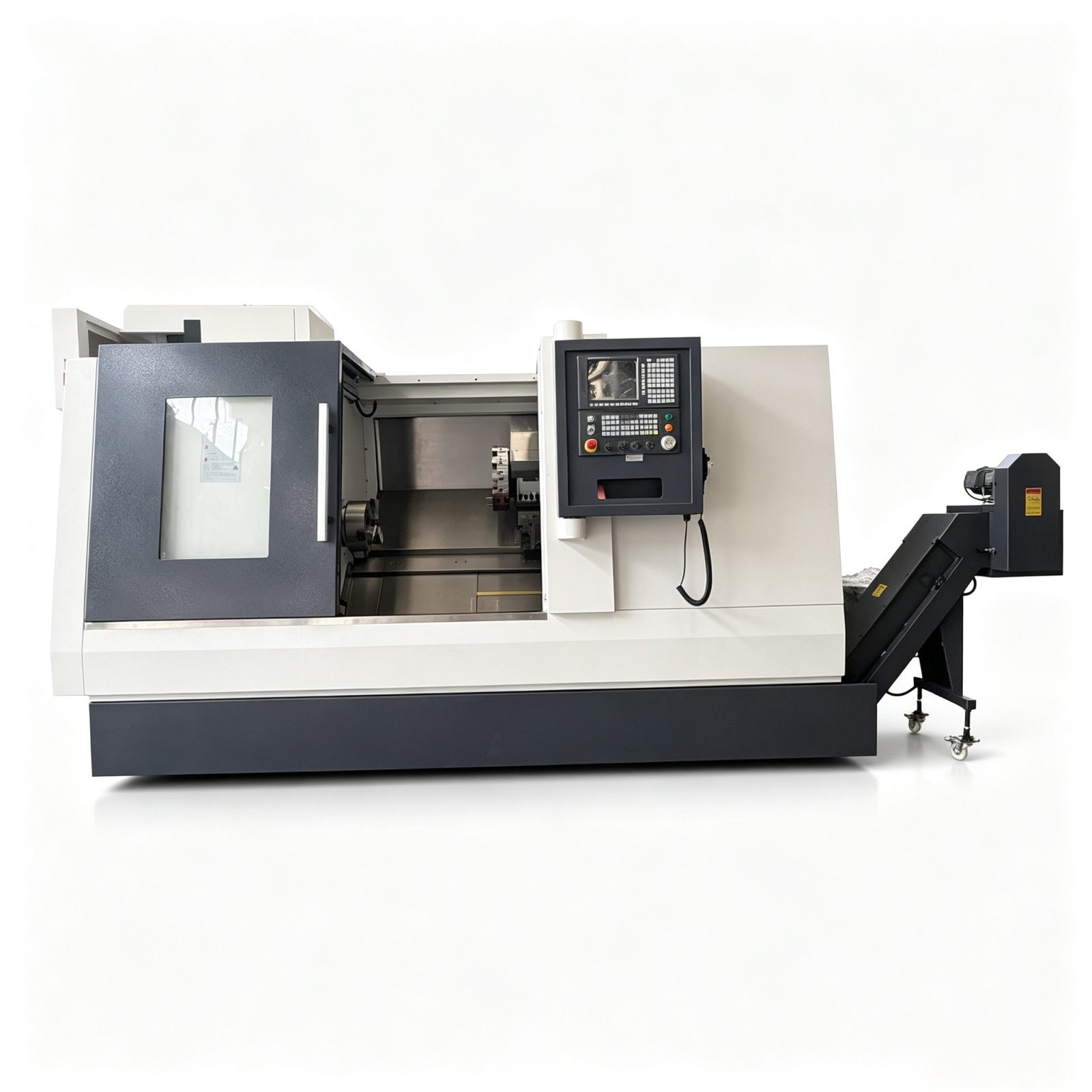

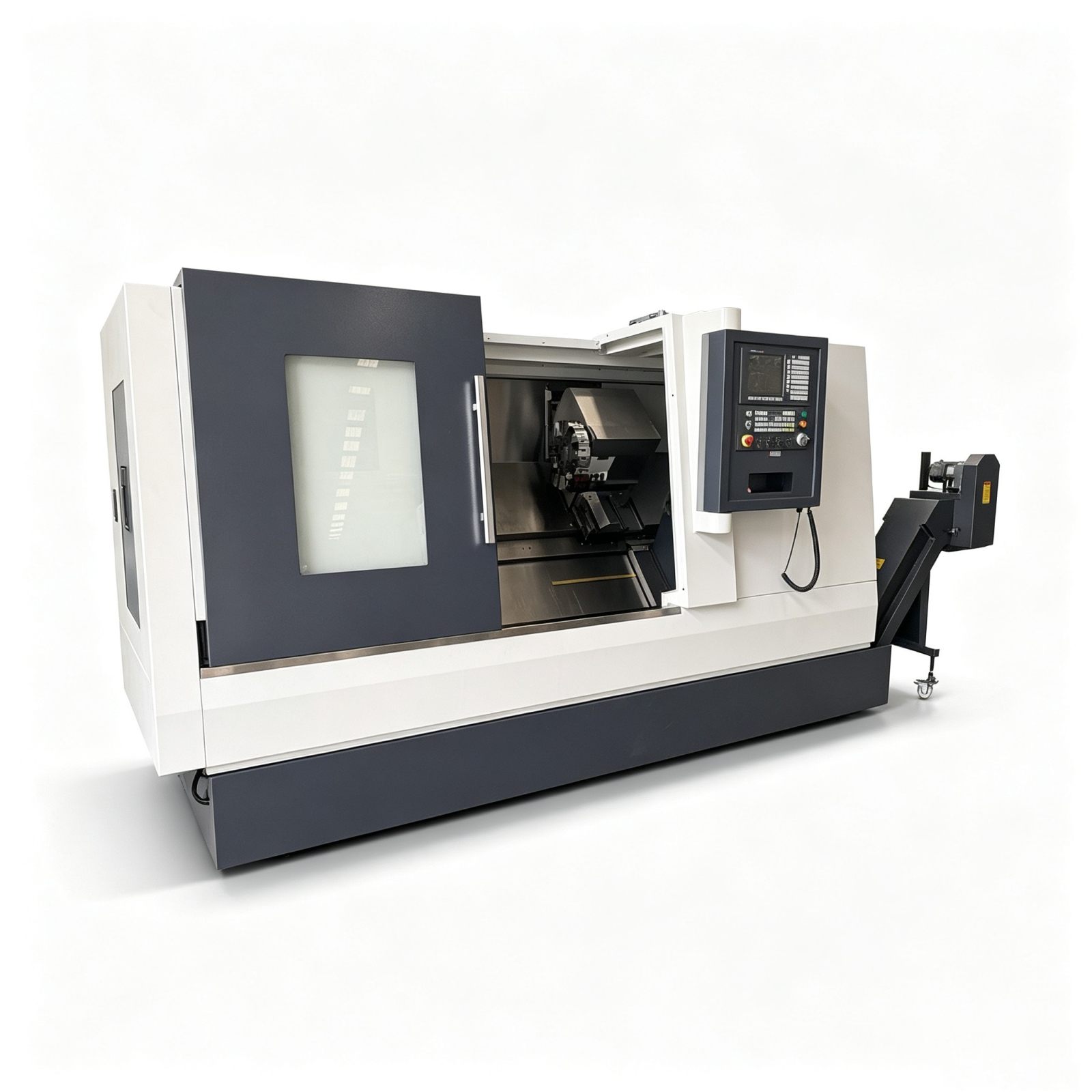

TCK50 CNC Slant-Bed Lathe

Overview

The slant-bed CNC lathe is a precision turning machine designed for high‑efficiency machining of shaft‑type, disc‑type, and complex rotational components. Its defining feature — an inclined bed structure — sets it apart from conventional flat‑bed lathes by delivering superior rigidity, excellent chip evacuation, and consistent accuracy even under heavy cutting conditions.

This machine is widely used in automotive manufacturing, aerospace, hydraulic components, mold making, and general engineering industries, where reliable performance and high productivity are essential for meeting production targets.

Features

Superior Chip Evacuation – The inclined bed allows chips to slide off under gravity, preventing accumulation on the cutting area and reducing thermal distortion. This results in cleaner operation and improved surface finish

High Rigidity and Damping – The box‑type ribbed structure and heavy‑duty cast construction provide excellent vibration damping, enabling stable cutting performance during both heavy roughing and precision finishing operations.

Precision Feed System – All axes are equipped with high‑precision linear guide ways and pre‑tensioned ball screws driven by servo motors. This ensures smooth motion, excellent repeatability, and reliable positioning accuracy over long production runs.

Live Tool Capability – The machine can be equipped with a live tool turret and C‑axis spindle, enabling milling, drilling, and tapping operations in addition to turning — all in a single setup.

Automation‑Ready – Designed with standard interfaces for integration with robotic loaders, bar feeders, and pallet systems, supporting both standalone and flexible production line configurations.

Operator‑Centric Design – The control panel is ergonomically positioned for easy access, while the CNC system offers intuitive programming and real‑time monitoring, reducing setup time and operator fatigue.
